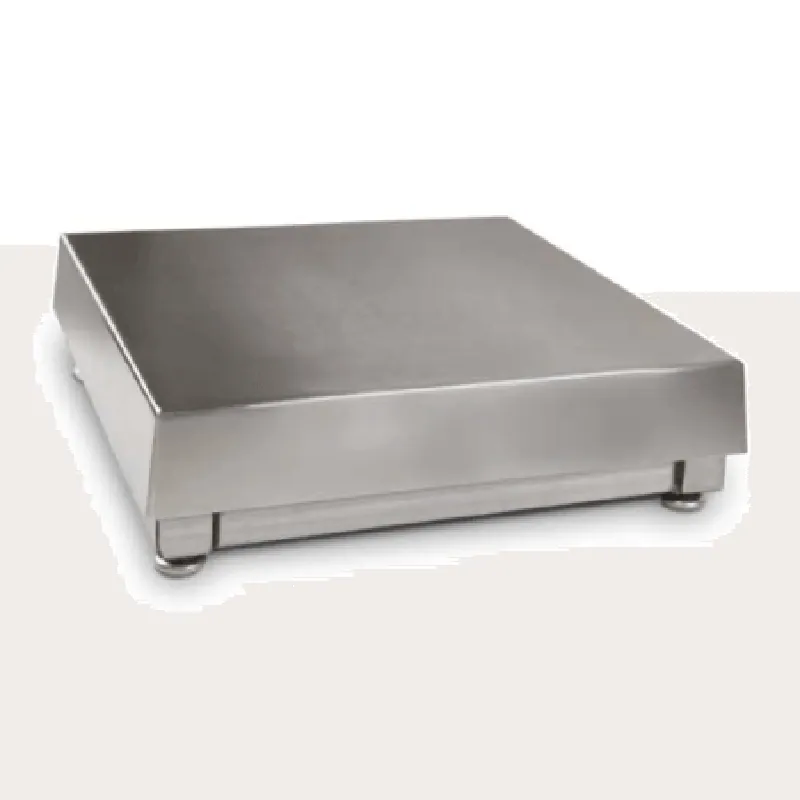

BenchMark – HE Series

$1,270.00$2,430.00

SKU: N/A Category:

Specifications

Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed

Output Impedance:
1,000 Ω

Maximum Overload:
150 to 200% depending on capacity

Overload Protection:
Five-point, independently adjusted

Cable Length:
10 ft (3 m)

Compensated Temperature Range:
14 F to 104 F (-10 C to 40 C)

Warranty:
Three-year limited warranty
(includes water ingress)

Approvals:
NTEP CC 95-072, Class III, 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
Load cell is FM approved

Standard Features

• 304 stainless steel construction
• LifeGuard base design isolates load cell from overloads and shock loads for added durability
• Specially designed adjustable support feet provide exceptional traction and won't scratch surfaces

Additional information

Weight 16.8 kg
Dimensions 30.5 × 45.7 × 10.1 cm
Platform Capacity

Capacity: 50 lb (Dimensions: 12 x 18 x 4 in), Capacity: 100 lb (Dimensions: 12 x 18 x 4 in), Capacity: 50 lb (Dimensions: 18 x 18 x 5.25 in), Capacity: 100 lb (Dimensions: 18 x 18 x 5.25 in), Capacity: 150 lb (Dimensions: 18 x 18 x 5.25 in), Capacity: 200 lb (Dimensions: 18 x 18 x 5.25 in), Capacity: 250 lb (Dimensions: 18 x 18 x 5.5 in), Capacity: 300 lb (Dimensions: 18 x 18 x 5.5 in), Capacity: 500 lb (Dimensions: 18 x 18 x 5.5 in), Capacity: 1,000 lb (Dimensions: 18 x 18 x 5.5 in), Capacity: 50 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 100 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 150 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 200 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 250 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 300 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 500 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 1,000 lb (Dimensions: 18 x 24 x 5.5 in), Capacity: 100 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 150 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 200 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 250 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 300 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 500 lb (Dimensions: 24 x 24 x 5.5 in), Capacity: 1,000 lb (Dimensions: 24 x 24 x 5.5 in)
