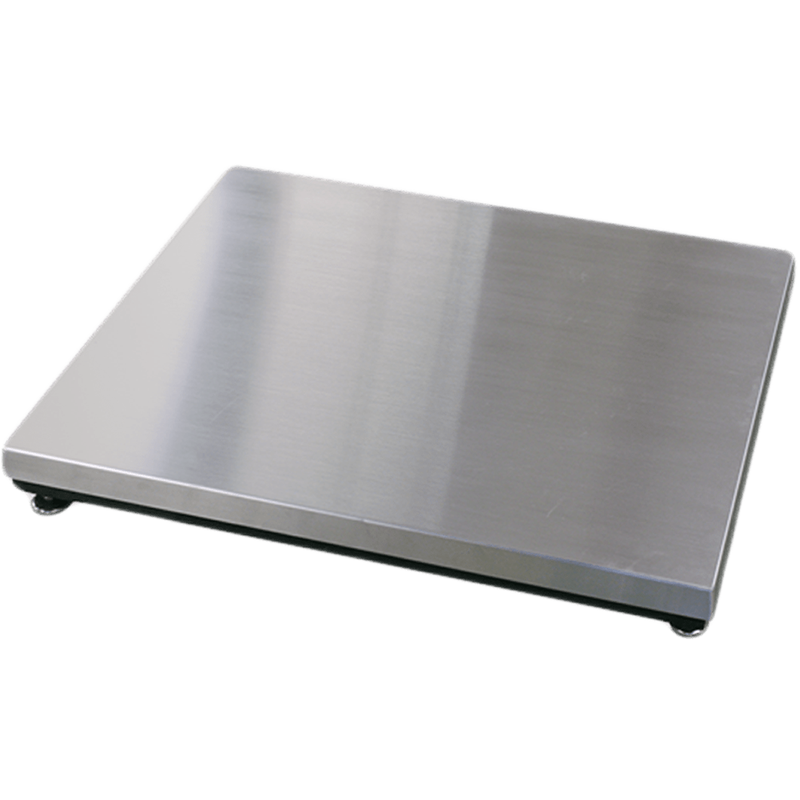

BenchMark – LP – Low Profile Bench Scales
$1,120.00 – $2,150.00
Specifications
Load Cell, NTEP Certified:
IP65 aluminum, 1.0 mV/V ± 10%
End Load Capacity:
60% of full scale capacity
Cable Length:
20 ft (6.1 m) for connecting junction box to indicator
Warranty:
Two-year limited warranty
Approvals:
NTEP CC 08-017, Class III, 5,000 d (except 1000 lb capacity)
Measurement Canada AM-5660, Class III 5,000 d (except 500 kg capacity)
Standard Features
• Mild steel base construction
• 304 stainless steel construction
• ABS junction box
• Four planar beam load cells
• Adjustable leveling feet
• 20 ft of EL 147 load cell cable
• Holes in lower frame for mounting scale without adjustable leveling feet
Additional information
| Weight | 34 kg |
|---|---|
| Dimensions | 45.7 × 45.7 × 6.7 cm |
| Platform Capacity | Capacity: 100 lb (Dimensions: 18 x 18 x 2.63 in), Capacity: 250 lb (Dimensions: 18 x 18 x 2.50 in), Capacity: 500 lb (Dimensions: 18 x 18 x 2.69 in), Capacity: 100 lb (Dimensions: 24 x 24 x 2.66 in), Capacity: 250 lb (Dimensions: 24 x 24 x 2.83 in), Capacity: 500 lb (Dimensions: 24 x 24 x 3.02 in), Capacity: 500 lb (Dimensions: 30 x 30 x 3.02 in), Capacity: 1,000 lb (Dimensions: 30 x 30 x 3.47 in), Capacity: 500 lb (Dimensions: 36 x 36 x 3.02 in), Capacity: 1,000 lb (Dimensions: 36 x 36 x 3.47 in) |
