CW-90 - Over/Under Checkweigher

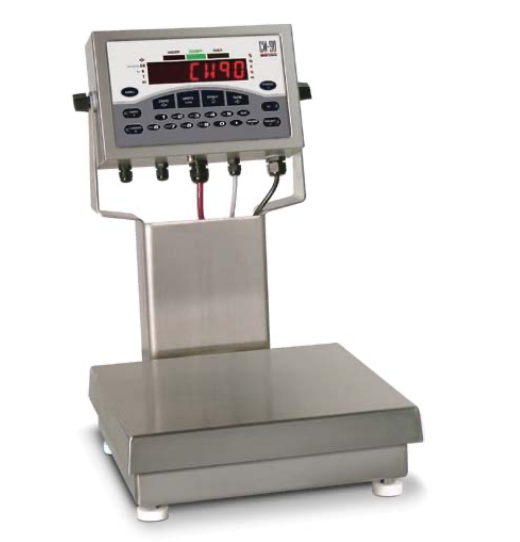

CW-90 – Over/Under Checkweigher

$1,325.00 – $1,435.00

SKU: N/A Category:

Specifications

Power - AC:
Line voltages:
115/230 VAC
Frequency:
50/60 Hz

Power Consumption:
1.5 A at 115 VAC (8 W)
0.75 A at 230 VAC (8 W)

Measurement Rate:
960,480, 240, 120, 60, 30, 15, 7.5 per second

System Linearity:
±0.01% full scale

Digital I/O:
Four channels on CPU board

Circuit Protection:
RFI, EMI, ESD protection

Display:
Large 0.8 in, 14 segment, six digit high-intensity red LED display

Status Annunciators:
Designators for %, kg, gm, lb, oz, center of zero, G/B, N, T, PT, neg, motion

Operating Temperature:
Legal: 14o F to 104o F (-10o C to 40o C)

Rating/Material:
IP66, stainless steel

Display Resolution:
100,000 graduations maximum

Load Cell:
Aluminum, environmentally sealed

Warranty:
Two-year limited warranty

Approvals:
Indicator:
NTEP CC 08-092, Class III/IIIL 10,000 d
Measurement Canada AM-5710, Class III 10,000 d
OIML R76/2006-GBI-10.02
TC GB-1385
TAC UK2900
UL and CUL listed
CE marked
Scale:
NTEP CC 95-072, Class III 5,000 d
Measurement Canada AM-5082, Class III 5,000 d
NSF

Standard Features

• Membrane keypad consisting of ZERO, UNITS, PRINT, TARE, OVER, UNDER, ID, TARGET, 0-9, CLEAR, DECIMAL, ENTER, MENU, POWER
• 304 stainless steel, IP66 rated indicator
• PreVentTM breather vent
• Storage for up to 50 IDs
• Unit of Measure: kg, gm, lb, oz, lb/oz (lb/oz is not Legal for Trade)
• High-intensity LED display
• Battery backed time and date
• Two full duplex RS-232 serial ports
• Configurable print formats
• Audit trail tracking
• Optional communications: Ethernet, USB or FiberOptic
• Four configurable Digital I/O
• Reflash memory to upgrade firmware
• Auto print capability

Scale

• Aluminum, environmentally sealed load cell
• 304 stainless steel
• Meets HACCP requirements
• Five point overload protection

Additional information

Weight 13.1 kg
Dimensions 25.4 × 25.4 × 10.8 cm
Platform Capacity

115 VAC (Capacity: 5 lb x 0.001 lb, Dimensions: 10 x 10 in), 115 VAC (Capacity: 10 lb x 0.002 lb, Dimensions: 10 x 10 in), 115 VAC (Capacity: 25 lb x 0.005 lb, Dimensions: 10 x 10 in), 115 VAC (Capacity: 25 lb x 0.005 lb, Dimensions: 12 x 12 in), 115 VAC (Capacity: 50 lb x 0.01 lb, Dimensions: 12 x 12 in), 115 VAC (Capacity: 100 lb x 0.02 lb, Dimensions: 12 x 12 in), 230 VAC (Capacity: 2.5 kg x 0.0005 kg, Dimensions: 10 x 10 in), 230 VAC (Capacity: 5 kg x 0.001 kg, Dimensions: 10 x 10 in), 230 VAC (Capacity: 10 kg x 0.002 kg, Dimensions: 10 x 10 in), 230 VAC (Capacity: 10 kg x 0.002 kg, Dimensions: 12 x 12 in), 230 VAC (Capacity: 25 kg x 0.005 kg, Dimensions: 12 x 12 in), 230 VAC (Capacity: 50 kg x 0.01 kg, Dimensions: 12 x 12 in), 230 VAC CE marked/OIML approved (Capacity: 3 kg x 0.001 kg, Dimensions: 254 x 254 mm), 230 VAC CE marked/OIML approved (Capacity: 6 kg x 0.002 kg, Dimensions: 254 x 254 mm), 230 VAC CE marked/OIML approved (Capacity: 15 kg x 0.005 kg, Dimensions: 254 x 254 mm), 230 VAC CE marked/OIML approved (Capacity: 15 kg x 0.005 kg, Dimensions: 305 x 305 mm), 230 VAC CE marked/OIML approved (Capacity: 30 kg x 0.01 kg, Dimensions: 305 x 305 mm), 230 VAC CE marked/OIML approved (Capacity: 60 kg x 0.02 kg, Dimensions: 305 x 305 mm)
