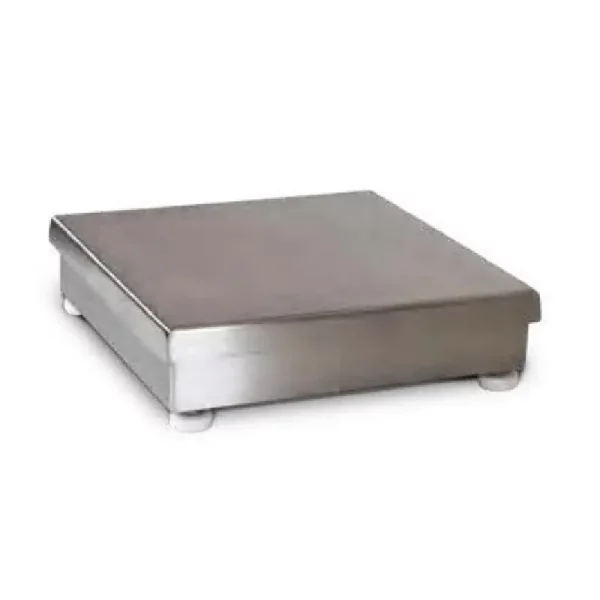

CW-90XB – Light-capacity Bench Scales
$1,005.00 – $1,085.00
Specifications
Load Cell, NTEP Certified:
IP69K stainless steel and hermetically sealed
Output Impedance:
350 Ω
Maximum Overload:
180 to 200% depending on capacity
Overload Protection:
Five-point, independently adjusted
Cable Length:
34 in or 10 ft (3 m)
Compensated Temperature Range:
14 F to 104 F (-10 C to 40 C)
Warranty:
Three-year limited warranty
Approvals:
NTEP CC 96-107, Class III, 3,000 d
Measurement Canada AM-5156, Class III 3,000 d
Load cell is FM approved
Standard Features
• 304 stainless steel construction
• Five-point overload protection
• Specially designed adjustable support feet provide exceptional traction and won't scratch surfaces
• IP69K, stainless steel hermetically sealed load cell
Additional information
| Weight | 6.3 kg |
|---|---|
| Dimensions | 25.4 × 25.4 × 10.8 cm |
| Platform Capacity | CW-90XB, 10 ft Cable (Capacity: 5 lb)(10 x 10 x 4.25 in), CW-90XB, 10 ft Cable (Capacity: 10 lb)(10 x 10 x 4.25 in), CW-90XB, 10 ft Cable (Capacity: 25 lb)(10 x 10 x 4.25 in), CW-90XB, 10 ft Cable (Capacity: 25 lb)(12 x 12 x 4.25 in), CW-90XB, 10 ft Cable (Capacity: 50 lb)(12 x 12 x 4.25 in), CW-90XB, 10 ft Cable (Capacity: 100 lb)(12 x 12 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 5 lb)(10 x 10 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 10 lb)(10 x 10 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 25 lb)(10 x 10 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 25 lb)(12 x 12 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 50 lb)(12 x 12 x 4.25 in), CW-90XB, 34 in Cable (Capacity: 100 lb)(12 x 12 x 4.25 in) |
