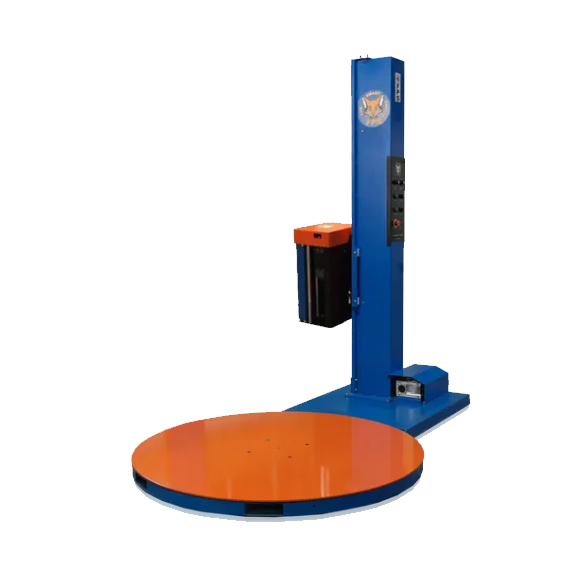

FPS 200 – Semi Automatic Low Profile Turntable Pallet Wrapper

PRODUCTION SPEED:   1-40 LPH*

LOAD SIZE:   55″L x 55″W x 90″H (80″ Diagonal)

WEIGHT CAPACITY:   5000LBS

STRUCTURAL:   WELDED STEEL CONSTRUCTION

TURNTABLE DRIVE:   1/2HP DC MOTOR, 20:1 GEARBOX  36 BEARING TABLE SUPPORTS

TURNTABLE SPEED:    0-15RPM

CARRIAGE DRIVE:   #50 ANSI CHAIN 60:1 GEARBOX

FILM DELIVERY:   HURRICANE PRESTRETCH CARRIAGE

FILM ROLL:   20″ MACHINE FILM, 3″ CORE

POWER REQUIREMENTS:    115VAC, 15A, 60Hz- PLUG AND PLAY

ONBOARD PROGRAMS

• STANDARD WRAP CYCLE

OPTIONS

• LOADING RAMP
• COMBINATION RAMP – FOR POWERED HAND TRUCKS
