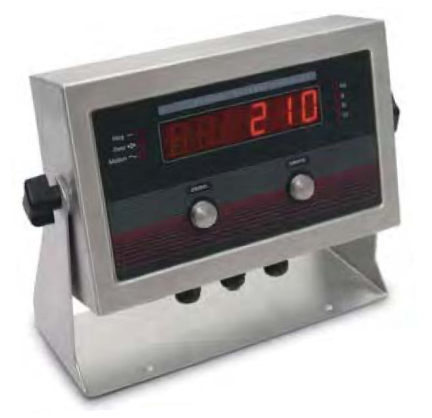

IQ Plus® 210 – Checkweigher Indicator Only

Specifications

Power:
Line voltages: 100-240 VAC
Frequency: 50-60 Hz

Excitation Voltage:
10 VDC 4 x 350Ω load cells

Analog Signal Input Range:
0.6 mV/V – 4.5 mV/V

Analog Signal Sensitivity:
0.3 μV/graduation minimum,
1.5 μV/grad recommended

A/D Sample Rate:
15 Hz

Resolution:
Display: 10,000d maximum

Digital Inputs:
Two inputs, TTL or switch closure, active-low

Communication Ports:
Full duplex RS-232, 9600, 4800, 2400, 1200bps;
Seven or eight data bits, even, off, or no parity

Display:
Six-digit light emitting diode (LED) display Seven-segment, 0.8 in (20 mm) digits

Temperature Range:
Operating: 14°F to 104°F (-10°C to 40°C)
Storage: 14°F to 122°F (-10°C to 50°C)

Enclosure Dimensions:
9.5 in x 6.0 in x 2.75 in (241 mm x 152 mm x 70 mm)

Rating/Material:
NEMA Type 4X/IP66, stainless steel

Weight:
10 lb (4.5 kg)

Warranty:
Two-year limited warranty

Approvals:
NTEP CC 00-045, Class III/IIL 10,000d
UL/cUL Listed

Standard Features

• Piezo switch technology with stainless steel buttons (zero and units)
• LED display, 0.8 in, 6-digit, 7-segment
• NEMA Type 4X stainless steel enclosure
• Status annunciators: lb, kg, oz, g, negative, motion, center of zero
• Displays units in decimals lb, kg, oz, lb and oz and grams
• 1 full duplex RS-232 port
• 2 digital inputs for remote zero, print and units
• PreVentTM breather vent
•Configurable with Revolution® software
