Specifications

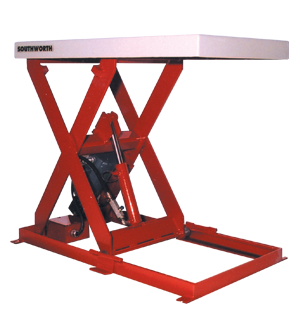

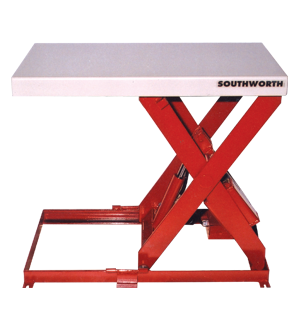

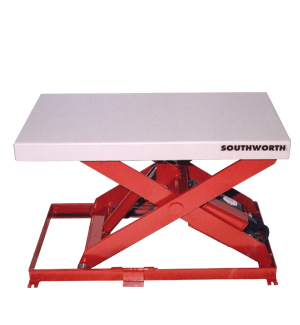

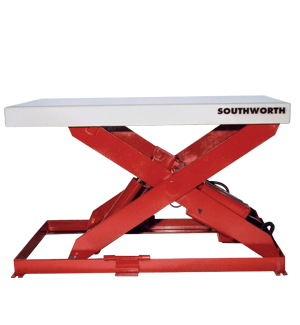

These lighter capacity, light-duty hydraulic lift tables are built to the same exacting standards as our higher capacity Backsaver Hydraulic Lift Tables. They are available in 550, 1100, & 1500 lb. capacities. Ideal for light duty applications, they are an economical way to eliminate manual lifting and positioning.
They Feature
- Low pressure hydraulics
- Fast raising and lowering
- Fully adjustable down speed
- Heavy-duty torque tubes to minimize deflection
- Lubricated for life pins, rollers and bushings
- Full width straight through axles for increased stability
- Heavy-duty wire braided hoses for maximum burst strength
- Tell-tale return hydraulic line prevents fluid spillage
- Built-in maintenance chocks
Model Number |
Load Capacity |
Raised Height |
Lowered Height |
Standard Base & Platform | Motor HP |
Voltage/ Phase/HZ |
Weight |
LL05.5-26 | 550 lbs. | 31-1/2" | 5-1/2" | 20" x 36" | 0.5 | 115/1/60 | 310 lbs |
LL1.1-26 | 1100 lbs | 31-1/2" | 5-1/2" | 20" x 36" | 0.5 | 115/1/60 | 278 lbs |
LL1.5-35 | 1500 lbs | 41-1/4" | 6-1/4" | 24" x 48" | 0.5 | 115/1/60 | 450 lbs |
