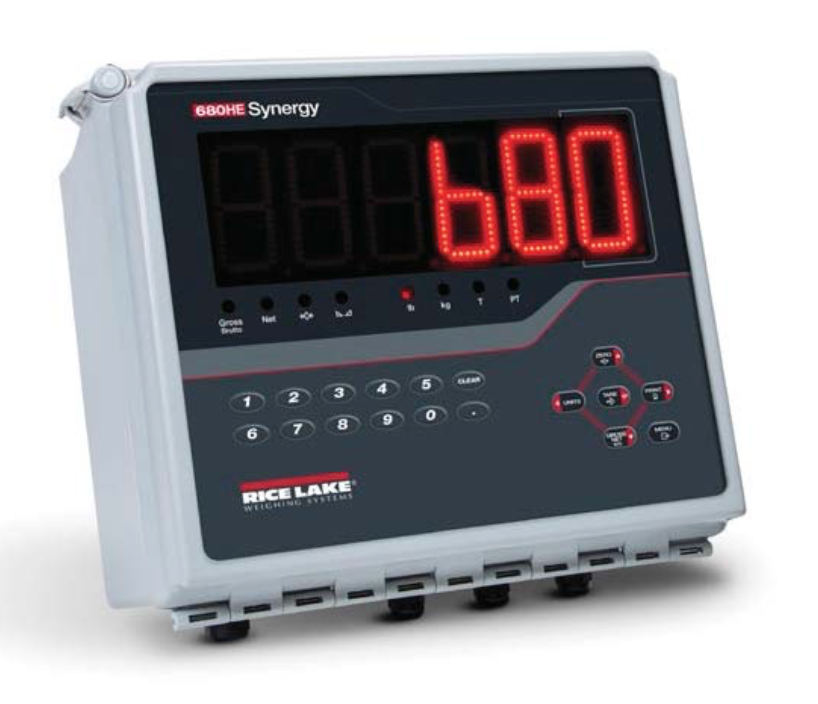

Specifications
Power:
Line voltages: 100-240 VAC
Frequency: 50-60 Hz
Power consumption:
12W (AC) with one 350 ohm load cell, 30W max
Excitation Voltage:
10 VDC (± 5 VDC)
Voltage Output:
0-5 VDC, 0-10 VDC,+/- 5 VDC, +/- 10 VDC
Voltage Load Resistance:
1 KΩ minimum
Current Output:
0-20 mA, 0-24 mA, 4-20 mA
Current Loop Resistance:
1 KΩ maximum
Analog Signal Input Range:
-0.5 mV/V to +7 mV/V
Analog Signal Sensitivity:
1 μV/graduation recommended
A/D Sample Rate:
6.25-120 Hz, software selectable
Resolution:
Internal: 8,000,000 counts
Display: 100,000
System Linearity / PI Rating:
Within 0.01% full scale
Digital I/O:
Four configurable I/O - 5V logic
Communication Ports:
Two RS-232 full duplex
RS-485/422 full duplex
Micro USB (device)
Ethernet (10/100)
Status Annunciators:
Eight LED annunciators
Display:
Six 2.5 in tall, seven-segment digits
Keys/Buttons:
Flat membrane panel, tactile feel
(18 buttons)
Temperature Range
Legal: 14°F to 104°F (-10°C to 40°C)
Industrial: 14°F to 122°F (-10°C to 50°C)
EMC Immunity:
10 V/m
Weight:
6.25 lb (3 kg)
Rating/Material:
Rating: IP66
Material: FRP
Warranty:
Two-year limited warranty
Approvals:
NTEP CC 19-021, Class III/IIIL, 10,000d
Measurement Canada*
UL/cUL Listed*
CE Marked
Standard Features
• Bright six-digit, seven-segment two color LED display
• Battery backed time and date
• Full numeric keypad
• Three serial ports: two RS-232, one full duplex RS-485
• Numeric keyed entry allowed for tare and setpoint entry
• Formattable tickets
• Ethernet TCP/IP
• USB device
• IP66 FRP enclosure
• Four on board configurable digital I/O points, TTL logic
Options
• Ethernet bulkhead connector
• Analog output: 16-bit resolution, 0-10VDC, 0-20mA, 4-20mA
Additional information
Weight | 6.25 kg |
---|---|
Part Number | Wall 680HE Plus, 115-230VAC FRP Enclosure, Wall 680HE Plus, 115-230VAC FRP Enclosure with Ethernet |
