Specifications

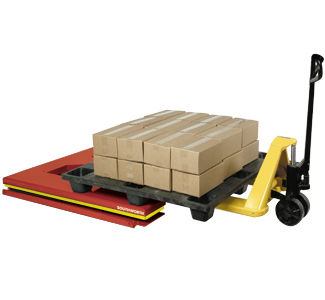

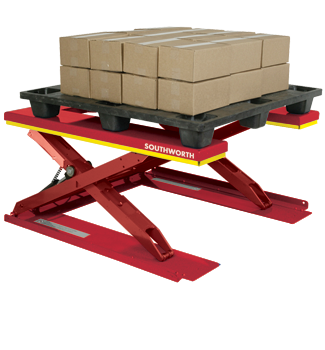

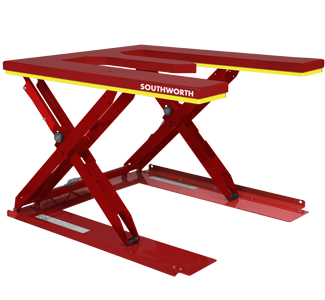

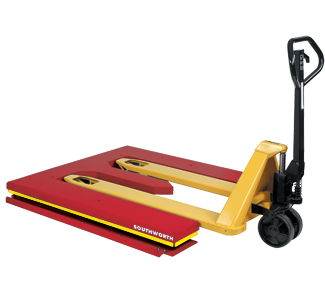

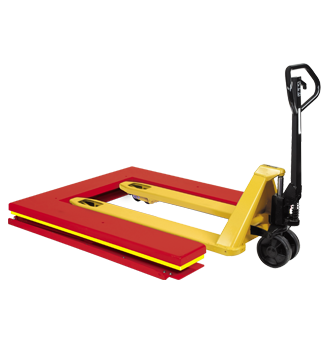

The Roll-In Level Loader from Southworth features a unique low-profile design that allows it to be fed with an ordinary hand pallet truck. Simply pick up a palletized load, raise the pallet truck and roll the load into position. The pallet moves over the Roll-In while the pallet truck rolls between the outside platform and the center support beam. By eliminating the need for forklift trucks, costs are reduced and productivity is improved. A convenient footswitch allows for hands-free positioning of the load. A full perimeter toe-guard provides an added measure of safety.
Model Number |
Load Capacity |
Raised Height |
Lowered Height |
Platform Size |
Lifting Speed |
Motor HP |
Voltage Phase/HZ |
Shipping Weight |
ROLL-E 2.2-28 | 2,200 lbs | 31 ½" | 3 ¼" | 49" x 57" | 22 sec | 1.0 | 115/1/60 | 700 lbs |
ROLL-U 2.2-28 | 2,200 lbs | 31 ½" | 3 ¼" | 49" x 57" | 22 sec | 1.0 | 115/1/60 | 700 lbs |
