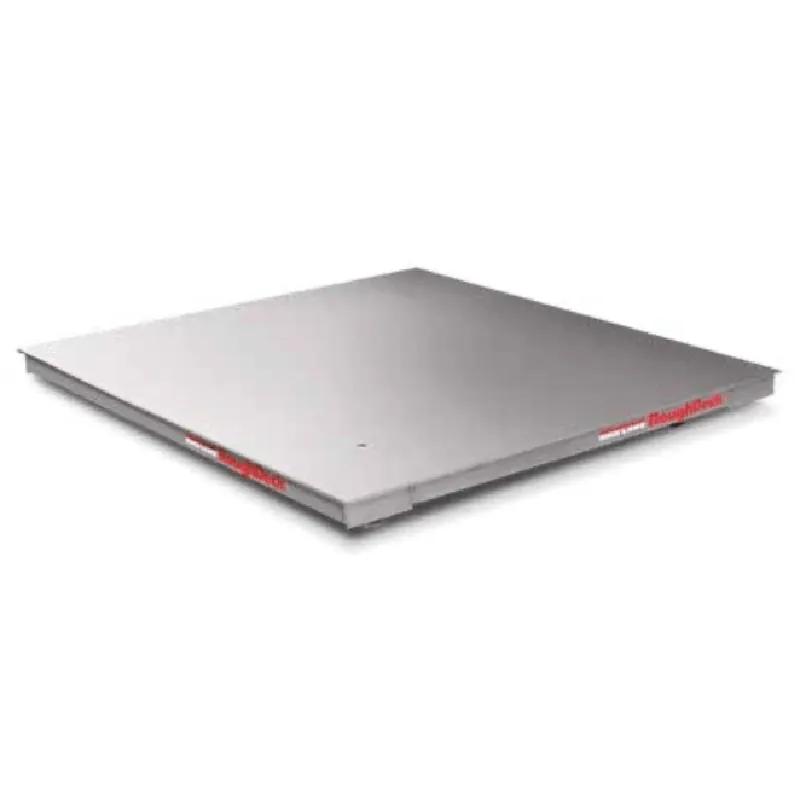

RoughDeck – HE -Hostile Environment Stainless Steel Floor Scale

$2,965.00$10,515.00

Clear
SKU: N/A Category:

Specifications

End Load Capacity:
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m)

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty:
RoughDeck HE weldment five years, load cells two years, all other components one year

Approvals:
NTEP Certified, CC 92-001 Class III 5,000 d

Standard Features

• Rugged washdown design
• 304 stainless steel construction
• Rigid 304 stainless steel channel frame
• Four stainless steel, welded-seal, IP69K shear beam load cells
• 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
• Remote TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card for remote mounting
• Load cells protected on all four sides
• Smooth stainless steel deck

Additional information

Weight 78.4 kg
Dimensions 76.2 × 76.2 × 8.9 cm
Platform Size

2.5 x 2.5 x 0.3 ft (Capacity: 2,000 lb), 3 x 3 x 0.3 ft (Capacity: 2,000 lb), 4 x 4 x 0.3 ft (Capacity: 5,000 lb), 4 x 4 x 0.3 ft (Capacity: 10,000 lb), 4 x 5 x 0.3 ft (Capacity: 5,000 lb), 4 x 5 x 0.3 ft (Capacity: 10,000 lb), 5 x 5 x 0.3 ft (Capacity: 5,000 lb), 5 x 5 x 0.3 ft (Capacity: 10,000 lb), 5 x 7 x 0.3 ft (Capacity: 5,000 lb), 5 x 7 x 0.3 ft (Capacity: 10,000 lb), 2.5 x 2.5 x 0.3 ft (CA Approved, Capacity: 2,000 lb), 3 x 3 x 0.3 ft (CA Approved, Capacity: 2,000 lb), 4 x 4 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 4 x 4 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 4 x 5 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 4 x 5 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 5 x 5 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 5 x 5 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 5 x 7 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 5 x 7 x 0.3 ft (CA Approved, Capacity: 10,000 lb)
