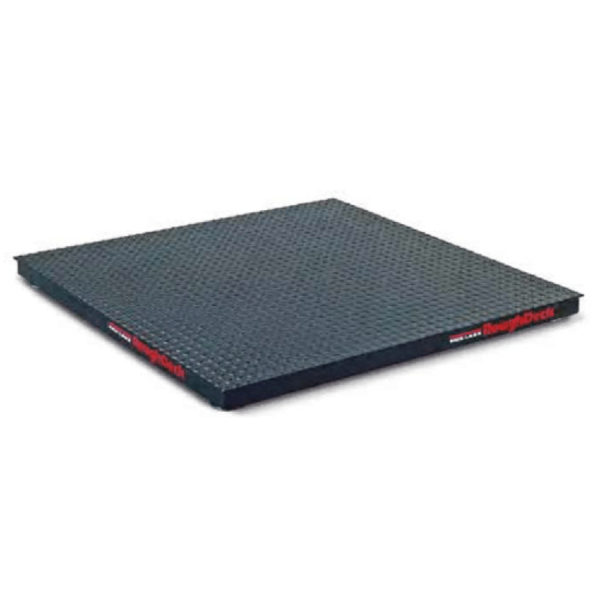

RoughDeck – HP – H – High Performance Heavy Capacity Floor Scale

$3,150.00$9,200.00

Clear
SKU: N/A Category:

Specifications

End Load Capacity:
100% full scale at 20,000 lb
66% full scale at 30,000 lb

Cable Length:
20 ft (6.1m) for connecting junction box to indicator

Threaded Eyebolt:
Hole (3/4-10NC) located in center of deck for easy lifting

Warranty (limited):
RoughDeck HP weldment five years, load cells two year, all other components one year

Approvals:
NTEP CC 92-001, Class III 5,000d
Measurement Canada AM-5284 (Only Capacities greater than 10,00 kg)

Standard Features

• Heavy-duty industrial design
• Structural steel channel frame
• Four NTEP Certified alloy steel, shear beam load cells
• 20ft SURVIVOR® EL147HE hostile environment load cell cable
• TuffSealreg; JB4SS stainless steel, NEMA type 4X junction box with signal trim card
• Side-access junction box
• Rugged diamond deck safety treadplate
• 4 adjustable stainless steel SUREFOOT support feet

Additional information

Weight 272.6 kg
Dimensions 121.9 × 121.9 × 10.16 cm
Platform Size

4 x 4 x 0.3 (20,000 lb), 4 x 5 x 0.3 (20,000 lb), 4 x 6 x 0.3 (20,000 lb), 4 x 7 x 0.3 (20,000 lb), 5 x 5 x 0.3 (20,000 lb), 5 x 6 x 0.3 (20,000 lb), 5 x 7 x 0.3 (20,000 lb), 6 x 6 x 0.3 (20,000 lb), 6 x 8 x 0.3 (20,000 lb), 7 x 9 x 0.3 (20,000 lb), 7 x 10 x 0.3 (20,000 lb), 8 x 10 x 0.3 (20,000 lb), 4 x 4 x 0.4 (30,000 lb), 4 x 5 x 0.4 (30,000 lb), 4 x 6 x 0.4 (30,000 lb), 4 x 7 x 0.4 (30,000 lb), 5 x 5 x 0.4 (30,000 lb), 5 x 7 x 0.4 (30,000 lb), 6 x 6 x 0.4 (30,000 lb), 7 x 10 x 0.4 (30,000 lb), 8 x 10 x 0.4 (30,000 lb), 4 x 4 x 0.4 (CA version, 30,000 lb), 4 x 5 x 0.4 (CA version, 30,000 lb), 4 x 6 x 0.4 (CA version, 30,000 lb), 4 x 7 x 0.4 (CA version, 30,000 lb), 5 x 5 x 0.4 (CA version, 30,000 lb), 5 x 7 x 0.4 (CA version, 30,000 lb), 6 x 6 x 0.4 (CA version, 30,000 lb), 7 x 10 x 0.4 (CA version, 30,000 lb), 8 x 10 x 0.4 (CA version, 30,000 lb), 4 x 4 x 0.3 (Quick Connector, 20,000 lb), 4 x 5 x 0.3 (Quick Connector, 20,000 lb), 4 x 6 x 0.3 (Quick Connector, 20,000 lb), 4 x 7 x 0.3 (Quick Connector, 20,000 lb), 5 x 5 x 0.3 (Quick Connector, 20,000 lb), 5 x 6 x 0.3 (Quick Connector, 20,000 lb), 5 x 7 x 0.3 (Quick Connector, 20,000 lb), 6 x 6 x 0.3 (Quick Connector, 20,000 lb), 6 x 8 x 0.3 (Quick Connector, 20,000 lb), 7 x 9 x 0.3 (Quick Connector, 20,000 lb), 7 x 10 x 0.3 (Quick Connector, 20,000 lb), 8 x 10 x 0.3 (Quick Connector, 20,000 lb), 4 x 4 x 0.4 (Quick Connector, 30,000 lb), 4 x 5 x 0.4 (Quick Connector, 30,000 lb), 4 x 6 x 0.4 (Quick Connector, 30,000 lb), 4 x 7 x 0.4 (Quick Connector, 30,000 lb), 5 x 5 x 0.4 (Quick Connector, 30,000 lb), 5 x 7 x 0.4 (Quick Connector, 30,000 lb), 6 x 6 x 0.4 (Quick Connector, 30,000 lb), 7 x 10 x 0.4 (Quick Connector, 30,000 lb), 8 x 10 x 0.4 (Quick Connector, 30,000 lb), 4 x 4 x 0.4 (CA version, Quick Connector, 30,000 lb), 4 x 5 x 0.4 (CA version, Quick Connector, 30,000 lb), 4 x 6 x 0.4 (CA version, Quick Connector, 30,000 lb), 4 x 7 x 0.4 (CA version, Quick Connector, 30,000 lb), 5 x 5 x 0.4 (CA version, Quick Connector, 30,000 lb), 5 x 7 x 0.4 (CA version, Quick Connector, 30,000 lb), 6 x 6 x 0.4 (CA version, Quick Connector, 30,000 lb), 7 x 10 x 0.4 (CA version, Quick Connector, 30,000 lb), 8 x 10 x 0.4 (CA version, Quick Connector, 30,000 lb)
