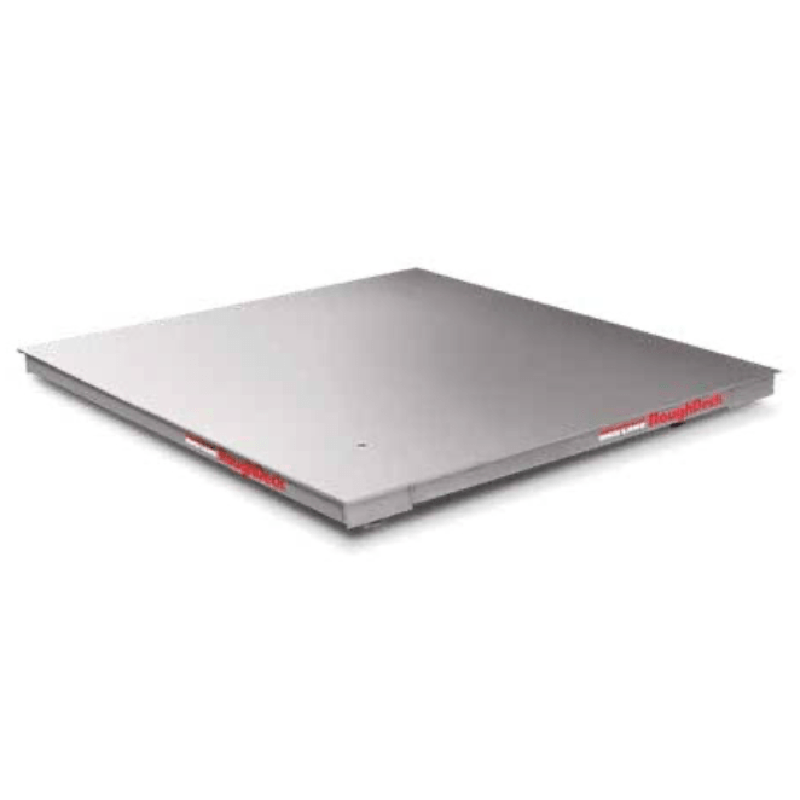

RoughDeck – SS – Stainless Steel Floor Scale

$2,645.00$10,195.00

Clear
SKU: N/A Category:

Specifications

End Load Capacity:
200% full scale at 1,000 lb
100% full scale at 2,000 lb and 5,000 lb
80% full scale at 10,000 lb

Cable Length:
20 ft (6.1 m) (for connecting junction box to indicator)

Threaded Eyebolt:
Hole (1/2-20 NF) located in center of deck for easy lifting

Warranty:
RoughDeck SS weldment five years, load cells two years, all other components one year

Approvals:
NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-4827, Class III 5,000 d

Standard Features

• Rugged non-corrosive design
• 304 stainless steel construction
• Rigid stainless steel channel frame
• Four stainless steel, NTEP Certified, IP66 shear beam load cells
• 20 ft of SURVIVOR® EL147HE hostile environment load cell cable
• Side access junction box
• TuffSeal® JB4SS stainless steel, NEMA Type 4X junction box with signal trim card
• Smooth stainless steel deck
• Four adjustable stainless steel SUREFOOTTM support feet

Additional information

Weight 78.4 kg
Dimensions 76.2 × 76.2 × 8.9 cm
Platform Size

2.5 x 2.5 x 0.3 ft (Capacity: 2,000 lb), 3 x 3 x 0.3 ft (Capacity: 1,000 lb), 3 x 3 x 0.3 ft (Capacity: 2,000 lb), 4 x 4 x 0.3 ft (Capacity: 1,000 lb), 4 x 4 x 0.3 ft (Capacity: 5,000 lb), 4 x 4 x 0.3 ft (Capacity: 10,000 lb), 4 x 5 x 0.3 ft (Capacity: 5,000 lb), 4 x 5 x 0.3 ft (Capacity: 10,000 lb), 5 x 5 x 0.3 ft (Capacity: 5,000 lb), 5 x 5 x 0.3 ft (Capacity: 10,000 lb), 5 x 7 x 0.3 ft (Capacity: 5,000 lb), 5 x 7 x 0.3 ft (Capacity: 10,000 lb), 2.5 x 2.5 x 0.3 ft (CA Approved, Capacity: 2,000 lb), 3 x 3 x 0.3 ft (CA Approved, Capacity: 1,000 lb), 3 x 3 x 0.3 ft (CA Approved, Capacity: 2,000 lb), 4 x 4 x 0.3 ft (CA Approved, Capacity: 1,000 lb), 4 x 4 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 4 x 4 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 4 x 5 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 4 x 5 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 5 x 5 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 5 x 5 x 0.3 ft (CA Approved, Capacity: 10,000 lb), 5 x 7 x 0.3 ft (CA Approved, Capacity: 5,000 lb), 5 x 7 x 0.3 ft (CA Approved, Capacity: 10,000 lb)
