Specifications

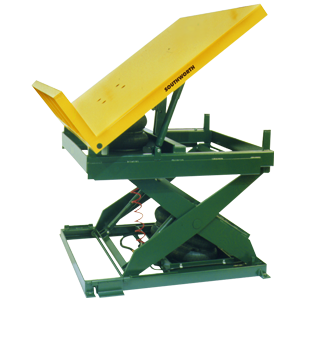

The E-Z Reach Lift and Tilt Table allows independent control of lift and tilt to precisely position containers or other items at the optimum height and tilt angle. E-Z Reach Lift and Tilt Tables with their exclusive Universal Tilter Base (UTB) compensate for the shifting center of gravity as loads are tilted. The open frame top allows the tilting hydraulics to retract within the frame resulting in a lower profile when in the full down position. Lift and Tilt Tables with UTB also feature a shorter but wider stance for improved stability in a small footprint.
Model Number | Load Capacity | Standard Platform | Max Platform | Lowered Height |
Raised Height |
Tilt Angle | Voltage Phase/Hz |
Shipping Weight |
UTB1-30 | 1000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 30˚ | 115/1/60 | 1300 lbs |
UTB2-30 | 2000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 30˚ | 115/1/60 | 1300 lbs |
UTB4-30 | 4000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 30˚ | 115/1/60 | 1300 lbs |
UTB1-45 | 1000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 45˚ | 115/1/60 | 1300 lbs |
UTB2-45 | 2000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 45˚ | 115/1/60 | 1300 lbs |
UTB4-45 | 4000 lbs | 42" x 42" | 66" x 54" | 11" | 39" | 45˚ | 115/1/60 | 1300 lbs |
