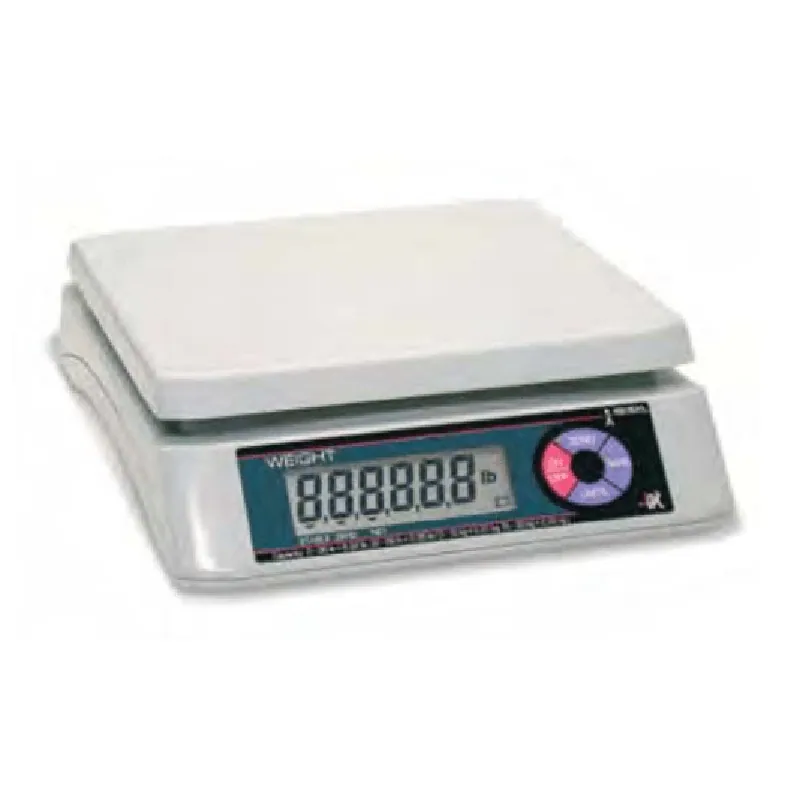

Ishida iPC Series – Portable Bench Scales

Specifications

Display
Six-digit (seven-segment). LCD
Character height: 1 in (25.4 mm)

Keyboard:
Zero, tare, on/off, unit (lb/kg)
Note: oz version only displays weight in oz

Power:
Two dry cell D type batteries* (up to 500 hours) or AC adapter
Auto power-off function (can be set to 60 min, 20 min, or off)

Divisions (Auto Ranging):
100 oz: 0.05 oz from 0-50 oz, 0.1 oz from 50-100 oz
6 lb (3kg): 0.002 lb (0.001 kg) from 0-3 lb (0-1.5 kg), 0.005 lb (0.002 kg) from 3-6 lb (1.5-3 kg)
15 lb (6 kg): 0.005 lb (0.002 kg) from 0-6 lb (0-3 kg), 0.01 lb (0.005 kg) from 6-15 lb (3-6 kg)
30 lb (15 kg): 0.01 lb (0.005 kg) from 0-15 lb (0-7.5 kg), 0.02 lb (0.01 kg) from 15-30 lb (7.5-15 kg)
60 lb (30 kg): 0.02 lb (0.01 kg) from 0-30 lb (0-15 kg), 0.05 lb (0.02 kg) from 30-60 lb (15-30 kg)

Operational Temperature:
23 F to 104 F (-5 C to 40 C)

Platter Size:
100 oz (3 kg): 9.1 x 7.8 in (231 x 198.1 mm)
6 lb (3 kg): 9.1 x 7.8 in (231 x 198.1 mm)
15 lb (6 kg): 9.1 x 7.8 in (231 x 198.1 mm)
30 lb (15 kg): 11 x 11.5 in (279.4 x 292.1 mm)
60 lb (30 kg): 11 x 11.5 in (279.4 x 292.1 mm)

Warranty:
One-year limited warranty

Approvals:
NTWP Certified CC 02-139, Class III
0-30 lb 1,500 d; 60 lb 1,200 d; 0-100 oz 1000 d
UL listed

Standard Features

• Six-digit liquid crystal display (LCD)
• Powered by two D cell batteries (up to 500 hours operation)
• Auto power-off function
• Overload stops
• Batteries and AC adapter not included
