Powered Turntable

$4,717.00$7,408.00

Clear
SKU: N/A Category: Tag:

Specifications

Southworth Powered Industrial Turntables are designed to the application and are available in a full range of capacities up to 6000 pounds and platform sizes up to 60" x 60". These industrial turntables included a 1/2" thick solid steel platform, oversized center pin and lubricated for life center pin bushing. Rotation speeds range from 1.5 RPM to 2.0 RPM. They feature a lowered height of only 9". Standard Voltage is 115/1/60.

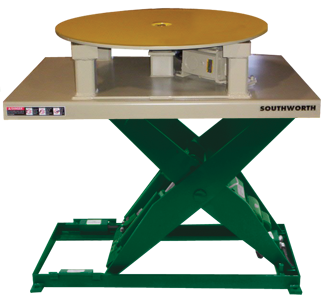

Like our manual industrial turntables, powered industrial turntables can be mounted to a lift table, fixed height platform or the floor.



Model Turntable Platform Capacity Turntable Speed Shipping Weight
PTNT 36-2000P 36" x 36" 2000 lbs 2.0 RPM 300 lbs
PTNT 36-4000P 36" x 36" 4000 lbs 2.0 RPM 300 lbs
PTNT 36-6000P 36" x 36" 6000 lbs 1.5 RPM 300 lbs
PTNT 48-2000P 48" x 48" 2000 lbs 2.0 RPM 600 lbs
PTNT 48-4000P 48" x 48" 4000 lbs 2.0 RPM 600 lbs
PTNT 48-6000P 48" x 48" 6000 lbs 1.5 RPM 600 lbs
PTNT 60-2000P 60" x 60" 2000 lbs 2.0RPM 800 lbs
PTNT 60-4000P 60" x 60" 4000 lbs 2.0 RPM 800 lbs
PTNT 60-6000P 60" x 60" 6000 lbs 1.5 RPM 800 lbs
