Roll Upender

$11,268.00$16,006.00

Clear
SKU: N/A Category: Tag:

Specifications

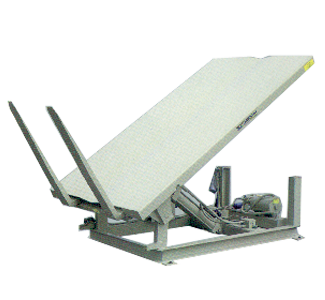

Southworth Hydraulic Upenders / Downenders are designed for safe and efficient handling of loads up to 6,000 lbs. Large workpieces, flat sheets or rolls can all be repositioned 90º in less than a minute. Upenders / Downenders with tilt angles of 30˚, 45˚ and 90˚ are available. The smooth, positive directing acting hydraulic system allows the operator to stop the upender anywhere in its travel and hold that position. The standard upender platen height is 10’’ -- but heights are available to suit most applications. The Upender / Downender has an internal hydraulic power unit, plumbed, wired and ready for operation when received. Over center valving maintains the cycle speed for protection of the operator and the load. Upender / Downender platforms are available with “V” decks, conveyor and other accessories to suit most applications.

Upender
Model
Capacity
at 24" L/C
Tilt
Angle
Bed Height Platen Height
UP2-90 2000 lbs 90˚ 25" 6"
UP4-90 4000 lbs 90˚ 25" 6"
UP6-90 6000 lbs 90˚ 25" 6"
