Summit® Scale and Indicator Package

$1,575.00$8,325.00

Clear
SKU: N/A Category:

Specifications

End Load Capacity:
100% full scale at 5,000 lb (2,500 kg)
80% full scale at 10,000 lb (5,000 kg)

Cable Length:
20 ft (6.1 m) for connecting junction box to indicator

Warranty:
Summit 3000 weldment and load cells two years, all other components one year

Approvals:
NTEP CC 92-001A9, Class III 5,000 d
Measurement Canada AM-5530, Class III 5,000 d

120/120 Plus Digital Weight Indicator

Power:
120/120 Plus
120/120 Plus
Line voltages: 115 or 230 VAC
Frequency: 50 or 60 Hz
120 Plus: (estimated battery life)
60 hours with 1 x 350 Ω
40 hours with 4 x 350 Ω
Charge time 8 hours

Operating Temperature:
Legal: 14° F to 104° F (-10° C to 40° C)
Industrial: 14° F to 122° F (-10° C to 50° C)

Rating/Material:
Enclosure: heavy gauge ABS

Warranty:
One-year limited warranty

120 Approvals:
NTEP CC 03-059, Class III/IIIL 6,000 d
Measurement Canada AM-5517, Class III/IIIHD
6,000 d
6,000 d OIML TC7028 T 5692, 5,000 d
CE marked

120 Plus Approvals:
NTEP CC 03-059, Class III/IIIL 6,000 d
Measurement Canada AM 5517
OIML TC 7626, T5692 5,000 d Class III/IIIHD 6,000 d

Standard Features

Summit® 3000 Floor Scale
• Four NTEP Certified alloy steel-shear beam load cells
• Top access junction box
• Rugged diamond safety treadplate steel deck
• Four adjustable rigid polyurethane rubber feet, 3 in (76.2 mm) diameter •
Signal trim summing board housed in ABS enclosure
• Threaded eyebolt hole (1/2–20NF) located in the center of the deck for easy lifting • 20 ft of EL147 load cell cable with quick disconnect
• Package configured and calibrated for 5,000 divisions
120 Digital Weight Indicator
• Large 0.8 in (20.3 mm) light emitting diode (LED) display
• Five-button operation
• Full front panel digital calibration and configuration
120 PLUS Digital Weight Indicator
• Large 0.8 in backlit liquid crystal display (LCD)
• 115 or 230 VAC wall adapter with rechargeable battery

Package is configured, corner-trim, and calibrated for 5,000 divisions before shipping

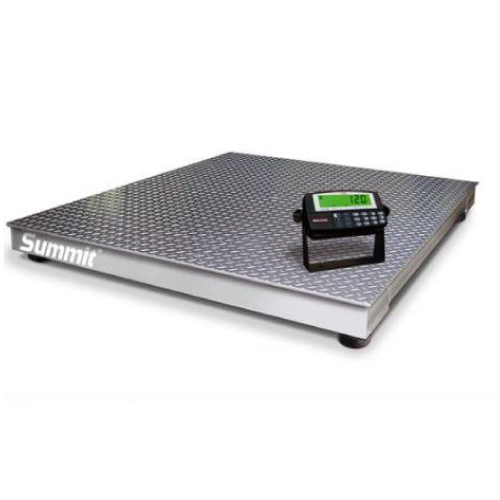

Floor Scale and Indicator Package
Package includes Summit® 3000 floor scale, 120 PLUS digital weight indicator with tilt stand, 20 ft load cell cable with quick disconnect, configured and calibrated

Additional information

Weight 142.8 kg
Dimensions 122 × 122 × 9.2 cm
Platform Size

Single Scale 115 VAC (120, 5,000 x 1 lb), Single Scale 115 VAC (120, 10,000 x 2 lb), Single Scale 115 VAC (120 Plus, 5,000 x 1 lb), Single Scale 115 VAC (120 Plus, 10,000 x 2 lb), Single Scale 230 VAC (120, 5,000 x 1 lb), Single Scale 230 VAC (120, 10,000 x 2 lb), Single Scale 230 VAC (120 Plus, 5,000 x 1 lb), Single Scale 230 VAC (120 Plus, 10,000 x 2 lb), Single Scale 115 VAC (120, 5,000 x 1 lb, CA Approved), Single Scale 115 VAC (120, 10,000 x 2 lb, CA Approved), Single Scale 115 VAC (120 Plus, 5,000 x 1 lb, CA Approved), Single Scale 115 VAC (120 Plus, 10,000 x 2 lb, CA Approved), Five-scale 115 VAC (120, 5,000 x 1 lb), Five-scale 115 VAC (120, 10,000 x 2 lb), Five-scale 115 VAC (120 Plus, 5,000 x 1 lb), Five-scale 115 VAC (120 Plus, 10,000 x 2 lb), Five-scale 230 VAC (120, 5,000 x 1 lb), Five-scale 230 VAC (120, 10,000 x 2 lb), Five-scale 230 VAC (120 Plus, 5,000 x 1 lb), Five-scale 230 VAC (120 Plus, 10,000 x 2 lb), Five-scale 115 VAC (120, 5,000 x 1 lb, CA Approved), Five-scale 115 VAC (120, 10,000 x 2 lb, CA Approved), Five-scale 115 VAC (120 Plus, 5,000 x 1 lb, CA Approved), Five-scale 115 VAC (120 Plus, 10,000 x 2 lb, CA Approved)
